PostgreSQL uses a process-based architecture where each connection is handled by a separate process. Some data structures are shared between these processes, for example, the shared buffer cache or the write-ahead log (WAL). To coordinate access to these shared resources, PostgreSQL uses several locking mechanisms, including spinlocks. Spinlocks are intended for very short-term protection of shared structures: rather than immediately putting a waiting process to sleep, they busy-wait and repeatedly check whether the lock is free. Under contention, PostgreSQL also applies an adaptive backoff that can include brief sleeps.

This article explains what spinlocks are and how they are implemented in PostgreSQL. It also describes how spinlocks can be monitored and demonstrates how my new pg_spinlock_tracer tool can be used to trace spinlock internals using eBPF.

What are Spinlocks?

When multiple processes need to access a shared resource, locks are used to ensure that only one process can modify the resource at a time. If a lock is not available, the waiting process is put to sleep until the lock can be acquired. This reduces CPU usage since the waiting process does not consume CPU cycles while sleeping. However, putting a process to sleep and waking it up again involves context switches, which take time and add latency to the operation. If the lock is expected to be held for a very short time, it may be more efficient for the waiting process to continuously check if the lock is available instead of sleeping. That is what spinlocks do: the lock spins in a loop, repeatedly checking the lock’s status until it can be acquired. Using a spinlock avoids the sleep/wakeup latency but can consume CPU cycles while spinning. If the hardware has only a few CPU cores, spinning can waste CPU cycles and lead to worse overall performance.

Implementation in PostgreSQL

The PostgreSQL implementation of spinlocks is mainly in src/include/storage/s_lock.h and src/backend/storage/lmgr/s_lock.c. The spinlock API provides four basic operations:

  • SpinLockInit: Initializes a spinlock.
  • SpinLockAcquire: Acquires a spinlock, blocking until it is available.
  • SpinLockRelease: Releases a spinlock.
  • SpinLockFree: Checks if a spinlock is free.

Note: SpinLockAcquire can also raise a FATAL error if the lock cannot be acquired within a certain time limit. In that case, the server terminates, performs recovery on restart, and becomes available again once recovery finishes.

Using Spinlocks

To use a spinlock, it must first be initialized using SpinLockInit.

slock_t mutex;
SpinLockInit(&mutex);

After initialization, the lock can be acquired and released as needed:

SpinLockAcquire(&mutex);
/* critical section */
SpinLockRelease(&mutex);

To determine if a spinlock is currently held by another process, the function SpinLockFree can be used:

if (!SpinLockFree(&mutex))
    /* lock is held by another process */

Spinlocks are used in several places in the PostgreSQL codebase, for example, to coordinate access in the write-ahead log (WAL) implementation or during checkpoints.

Implementation Details

The implementation is split into a platform-independent part and platform-specific parts. The platform-independent code in s_lock.c defines the API and higher-level behavior, while s_lock.h pulls in platform-specific assembly implementations depending on the target architecture.

Acquiring a Spinlock

To acquire a spinlock, PostgreSQL performs an atomic test-and-set (TAS) on the lock variable. The lock value is 0 when free and 1 when held. The TAS operation is atomic to avoid races where two processes both observe a free lock and try to acquire it simultaneously.

The platform-independent code for acquiring a lock looks as follows:

int
s_lock(volatile slock_t *lock, const char *file, int line, const char *func)
{
	SpinDelayStatus delayStatus;

	init_spin_delay(&delayStatus, file, line, func);

	while (TAS_SPIN(lock))
	{
		perform_spin_delay(&delayStatus);
	}

	finish_spin_delay(&delayStatus);

	return delayStatus.delays;
}

A struct SpinDelayStatus is used to track the number of spins and delays (this will be discussed in the next section). The platform-dependent macro TAS_SPIN performs the fast-path check and the actual test-and-set operation on the lock variable. As long as the lock is held by another process, TAS_SPIN returns 1 and the loop continues, calling perform_spin_delay before the next attempt. Once the lock becomes available, TAS_SPIN returns 0 and the loop terminates.

The implementation of TAS_SPIN for the x86-64 architecture looks as follows:

#define TAS_SPIN(lock)    (*(lock) ? 1 : TAS(lock))

static __inline__ int
tas(volatile slock_t *lock)
{
	slock_t		_res = 1;

	__asm__ __volatile__(
		"   lock         \n"
		"   xchgb  %0,%1 \n"
:		"+q"(_res), "+m"(*lock)
:		/* no inputs */
:		"memory", "cc");
	return (int) _res;
}

The macro TAS_SPIN first checks whether the lock variable is non-zero; if so, it returns 1 immediately without performing the atomic exchange. If the lock variable is 0, it calls TAS(lock) (which ultimately invokes tas) to perform the atomic test-and-set operation.

The tas function performs the atomic exchange using inline assembly. The lock prefix ensures the instruction is executed atomically across multiple CPU cores. The xchgb instruction swaps _res and the lock variable: _res starts at 1, so if the lock was free (0), the swap sets the lock to 1 and _res becomes 0 (success). If the lock was already 1, _res becomes 1 (failure to acquire). The function returns _res (0 on success, 1 on failure).

Spinlock Contention

When the lock cannot be acquired, the function perform_spin_delay is invoked. It implements an adaptive backoff and looks like this:

void
perform_spin_delay(SpinDelayStatus *status)
{
    [...]
	if (++(status->spins) >= spins_per_delay)
	{
		if (++(status->delays) > NUM_DELAYS)
			s_lock_stuck(status->file, status->line, status->func);

		if (status->cur_delay == 0) /* first time to delay? */
			status->cur_delay = MIN_DELAY_USEC;

		[...]
		pg_usleep(status->cur_delay);
		[...]

		/* increase delay by a random fraction between 1X and 2X */
		status->cur_delay += (int) (status->cur_delay *
			pg_prng_double(&pg_global_prng_state) + 0.5);

		/* wrap back to minimum delay when max is exceeded */
		if (status->cur_delay > MAX_DELAY_USEC)
			status->cur_delay = MIN_DELAY_USEC;

		status->spins = 0;
    }
}

On each invocation of the function, the number of spins is increased by one. If the number of spins exceeds a certain threshold (spins_per_delay), PostgreSQL sleeps for a few microseconds (pg_usleep) before the next attempt to acquire the lock. This turns PostgreSQL’s spinlocks into a hybrid approach (spin first, then sleep) and serves as a safety mechanism to prevent excessive CPU usage under high contention. It is only performed after a certain number of spins, which indicates that the lock was held for an extended period by another process.

Additionally, the delay is increased by a random fraction between 1X and 2X on every delay, which means that the delay increases exponentially with the number of delays. If the delay exceeds a certain maximum value (MAX_DELAY_USEC, 1000000 microseconds by default), it is wrapped back to a minimum value (MIN_DELAY_USEC, 1000 microseconds by default). This prevents the delay from growing indefinitely and ensures that the process will eventually wake up and try to acquire the lock again. The random fraction adds jitter, which can help reduce contention by preventing multiple processes from waking up and trying to acquire the lock at the same time.

If the number of delays exceeds NUM_DELAYS (default 1000), PostgreSQL calls s_lock_stuck, which raises a FATAL error indicating that the lock appears stuck.

Monitoring Spinlocks

Monitoring spinlocks and understanding spinlock contention can be crucial for diagnosing performance issues in PostgreSQL. In the following sections, an artificial spinlock contention is created and then observed using the pg_stat_activity view and the pg_spinlock_tracer tool.

Note: This example should not be executed on a production system, since it will cause the server to become unresponsive and may eventually terminate due to the FATAL error raised by s_lock_stuck.

Creating Artificial Spinlock Contention

To create such an artificial contention, two sessions to a database are opened. Afterward, two different tables are created:

CREATE TABLE data1 (id INT);
CREATE TABLE data2 (id INT);

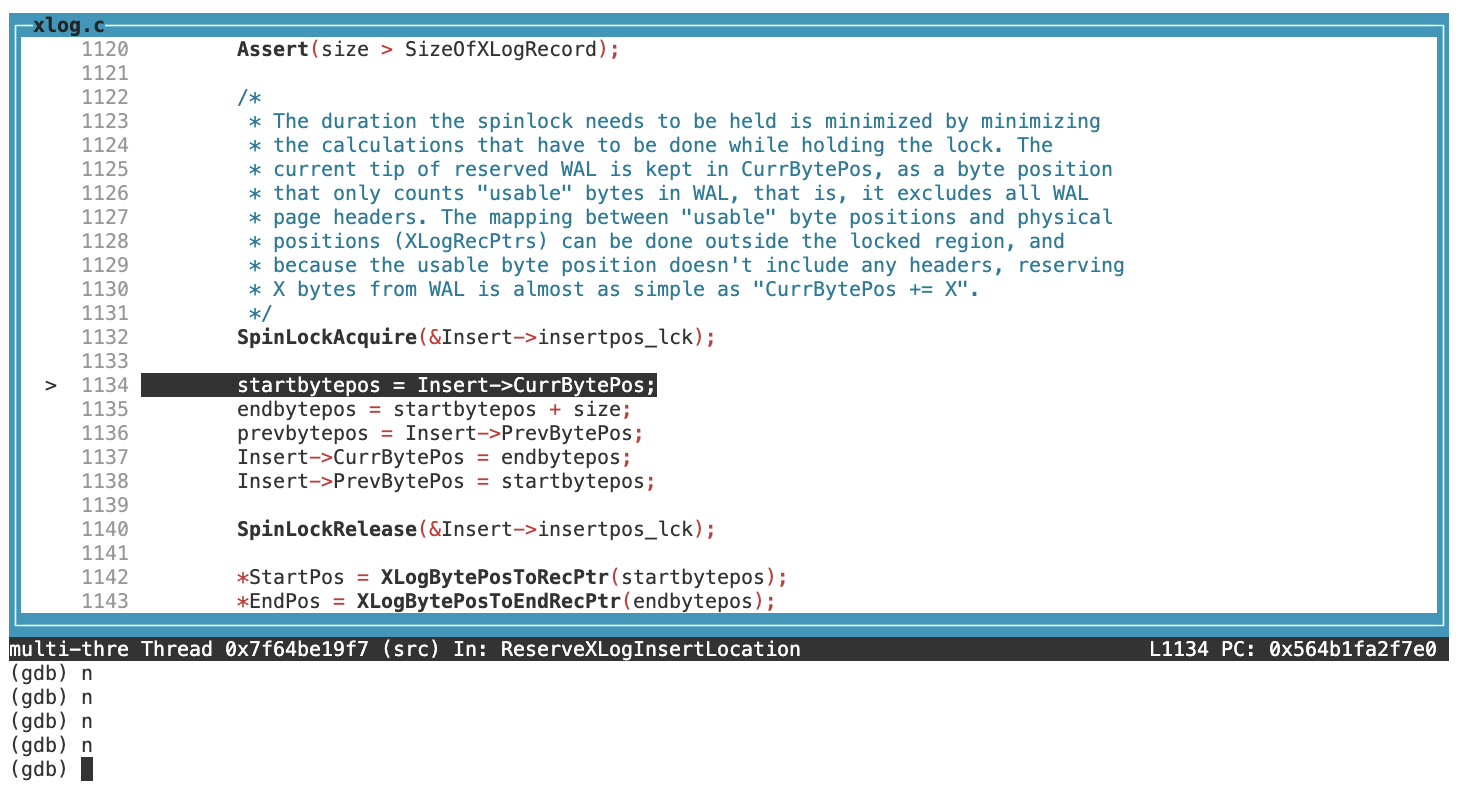

Furthermore, a debugger is attached to the first session, and a breakpoint is set in ReserveXLogInsertLocation. This function is responsible for reserving space in the write-ahead log (WAL) for a new record. It uses a spinlock to coordinate access to the WAL insertion point. Afterward, the first session performs an INSERT statement, which will cause the process to acquire the spinlock in ReserveXLogInsertLocation and then wait at the breakpoint.

INSERT INTO data1 VALUES (1);

After the breakpoint is hit, the following statements should be executed in the debugger until the line SpinLockAcquire(&Insert->insertpos_lck); is executed.


In the second session, another INSERT statement is executed, which will also try to acquire the same spinlock in ReserveXLogInsertLocation and wait for the lock to be released by the first session.

INSERT INTO data2 VALUES (1);

Two different tables are used to ensure that the contention is on the spinlock in ReserveXLogInsertLocation and not on another lock related to the table access.

Using pg_stat_activity

The view pg_stat_activity of the cumulative statistics system provides information about the current activity of all sessions in the PostgreSQL server. Lock contention can also be seen in this view.

mydb=# SELECT pid, backend_start, wait_event_type, wait_event, state, query from pg_stat_activity;
   pid   |         backend_start         | wait_event_type |     wait_event      | state  |  query
---------+-------------------------------+-----------------+---------------------+--------+-----------------------------
 2129513 | 2026-02-08 19:48:26.32229+01  |                 |                     | active | insert into data1 values(1);
 2129736 | 2026-02-08 19:49:00.578201+01 | Timeout         | SpinDelay           | active | insert into data2 values(1);
[...]

The output shows that the second session (PID 2129736) is waiting for a SpinDelay, which indicates that it is trying to acquire a spinlock but is currently delayed due to contention. More information about this view and the meaning of the different columns can be found in the documentation.

However, this view only provides a high-level overview of the lock contention and does not provide detailed information about the spinlock behavior, such as the number of spins and delays or the current delay value. For that, a more detailed tracing tool is needed.

Tracing Spinlocks with pg_spinlock_tracer

To trace spinlock contention in PostgreSQL, I implemented pg_spinlock_tracer as part of the pg-lock-tracer project. The tool uses eBPF to instrument the perform_spin_delay function and prints the contents of the SpinDelayStatus struct. For instance, it reports the number of spins and delays, the current delay, and the source location where the spinlock is being attempted.

Unlike the PostgreSQL view, pg_spinlock_tracer shows the internals of spinlock acquisition and contention, which can be useful for understanding behavior. A simple output of the tool looks as follows:

$ pg_spinlock_delay_tracer -x /home/jan/postgresql-sandbox/bin/REL_17_1_DEBUG/bin/postgres
[...]
13180680737869452 [Pid 1864403] SpinDelay spins=996 delays=939 cur_delay=566086 at ReserveXLogInsertLocation, xlog.c:1132
13180680737874986 [Pid 1864403] SpinDelay spins=997 delays=939 cur_delay=566086 at ReserveXLogInsertLocation, xlog.c:1132
13180680737880522 [Pid 1864403] SpinDelay spins=998 delays=939 cur_delay=566086 at ReserveXLogInsertLocation, xlog.c:1132
13180680737886009 [Pid 1864403] SpinDelay spins=999 delays=939 cur_delay=566086 at ReserveXLogInsertLocation, xlog.c:1132
13180681304189362 [Pid 1864403] SpinDelay spins=0 delays=940 cur_delay=661655 at ReserveXLogInsertLocation, xlog.c:1132
13180681304227806 [Pid 1864403] SpinDelay spins=1 delays=940 cur_delay=661655 at ReserveXLogInsertLocation, xlog.c:1132
13180681304241759 [Pid 1864403] SpinDelay spins=2 delays=940 cur_delay=661655 at ReserveXLogInsertLocation, xlog.c:1132
13180681304255150 [Pid 1864403] SpinDelay spins=3 delays=940 cur_delay=661655 at ReserveXLogInsertLocation, xlog.c:1132
[...]

The output shows that PID 1864403 (the second session to PostgreSQL) is trying to acquire a spinlock in ReserveXLogInsertLocation (xlog.c:1132). In the example, the process spins up to 999 times; once it reaches the threshold, it sleeps for cur_delay microseconds, and the spin counter is reset (visible as spins=0). The delay value then grows for subsequent attempts.

Conclusion

This article provided an overview of spinlocks in PostgreSQL, their implementation details, and how to observe spinlock contention. Spinlocks are a crucial part of PostgreSQL’s locking mechanism for short-term protection of shared resources. Understanding how they work and how to analyze contention can be valuable for diagnosing performance issues in PostgreSQL. The cumulative statistics system provides some insights into lock contention. The new pg_spinlock_tracer tool offers a more detailed view of the spinlock behavior and contention patterns.
